Husqvarna

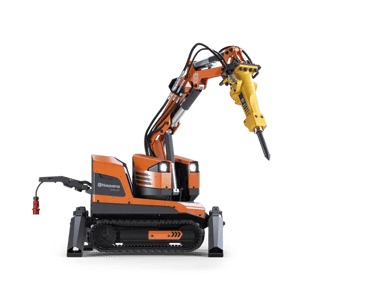

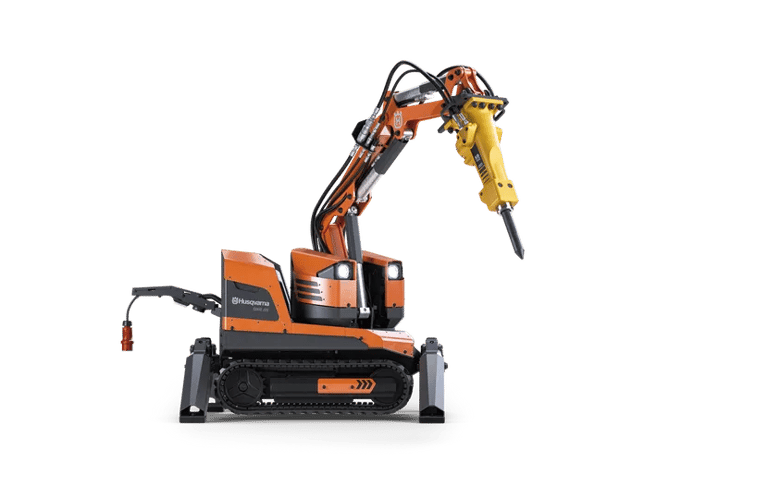

DXR 95
Machine weight (without attachment) - 589 kg, 1298.5 lbs
Oil capacity - 26L
Standard point size -
length min. - 1510 mm, 59.4 in
Width min. - 600 mm, 23.6 in
Height min. - 922 mm, 36.3 in
Vertical reach (incl. breaker) - 3160 mm, 124 in
Horizontal reach (incl. breaker) - 2670 mm, 105 in
Hydraulic oil - ISO VG 46

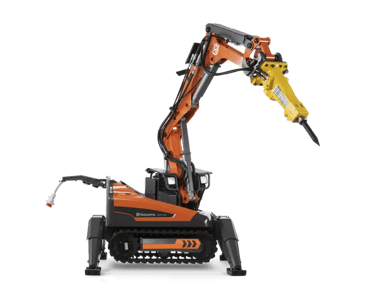

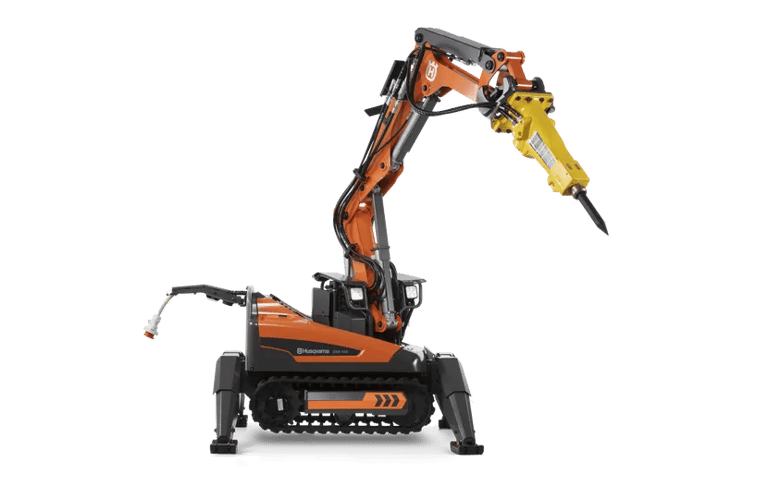

DXR 145
Machine weight (without attachment) - 985 kg, 2172 lbs
Oil capacity - 28L
Standard point size -
Length min. - 1932 mm, 76 in
Width min. - 771 mm, 30.4 in
Height min. - 1215 mm, 45.2 in
Vertical reach (incl. breaker) - 4400 mm, 173 in
Horizontal reach (incl. breaker) - 3700 mm, 145.7 in
Hydraulic oil - ISO VG 46

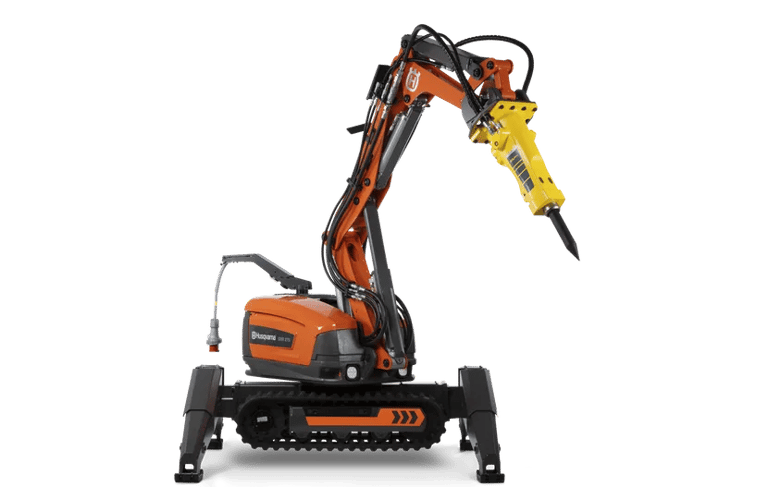

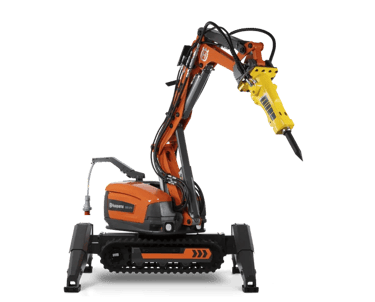

DXR 275
Machine weight (without attachment) - 1750 kg, 3858 lbs
Oil capacity - 42L
Standard point size -
Length min. - 2442 mm, 96.1 in
Width min. - 780 mm, 30.7 in
Height min. - 1367 mm, 53.8 in
Vertical reach (incl. breaker) - 4800 mm, 189 in
Horizontal reach (incl. breaker) - 4500 mm, 177 in
Hydraulic oil - ISO VG 46

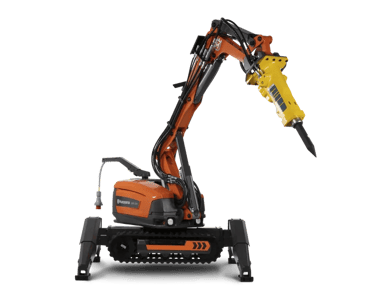

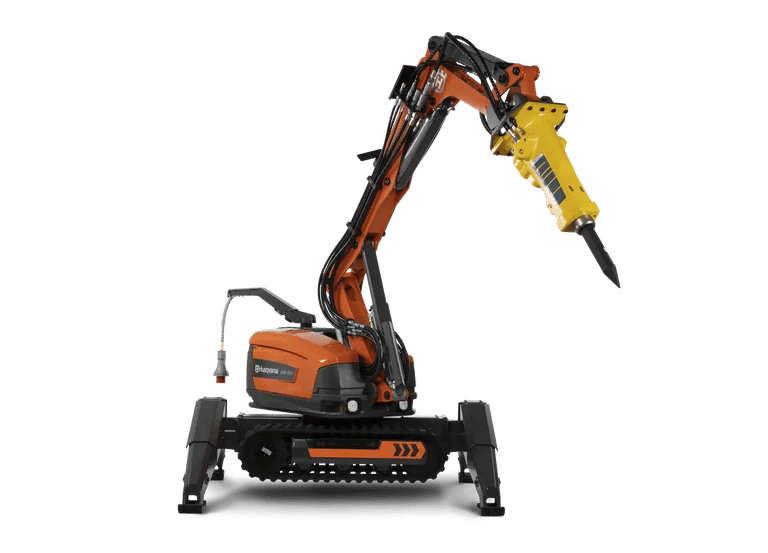

DXR 305
Machine weight (without attachment) - 1960 kg, 4321 lbs
Oil capacity - 42L
Standard point size -
Length - 2827 mm - 111.3 in
Width min. - 950 mm, 37.4 in
Height min. -1367 mm, 53.8 in
Vertical reach (incl. breaker) - 5200 mm, 204.7 in
Horizontal reach (incl. breaker) - 4900 mm, 192.9 in
Hydraulic oil - ISO VG 46

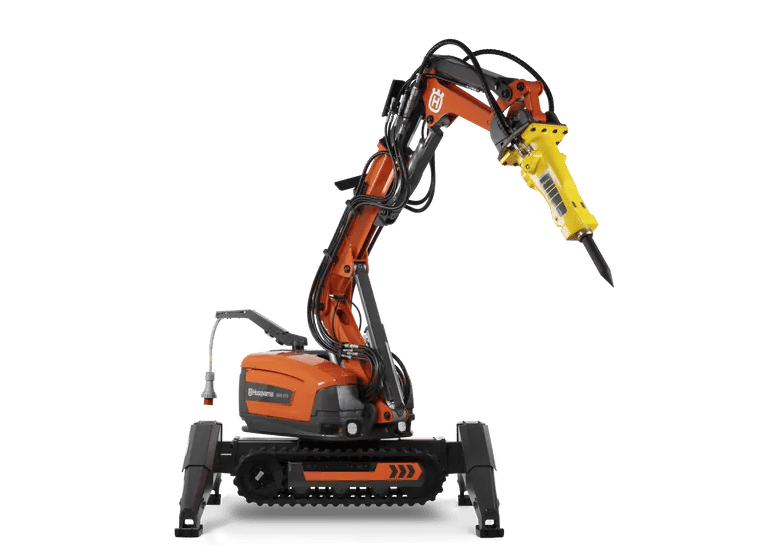

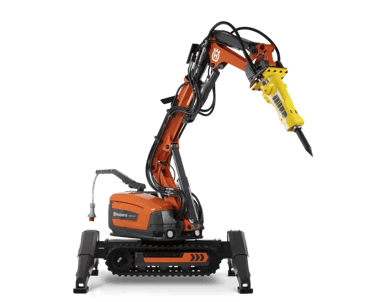

DXR 315
Machine weight (without attachment) - 2020 kg, 4453 lbs
Oil capacity - 42L
Standard point size -
Length min. - 2594 mm, 102.1
Width min. - 780 mm, 30.7 in
Height min. - 1485 mm, 58.46 in
Vertical reach (incl. breaker) - 5500 mm, 216.5 in
Horizontal reach (incl. breaker) - 5200 mm, 204.7 in
Hydraulic oil - ISO VG 46
