Brokks

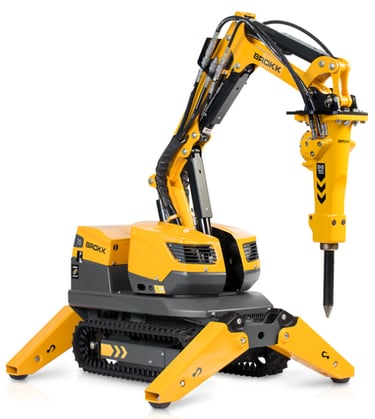

Brokk 70+
Machine weight (without attachment) - 560 kg, 1235 lbs
Recommended attachment weight - 105 kg, 231 lbs
Climbing inclination, max. - 30°
Standard point size -
Width min. - 597 mm, 23.5 in
Height min. - 880 mm, 34.6 in
Vertical reach (incl. breaker) - 3200 mm, 126 in
Horizontal reach (incl. breaker) - 2700 mm, 106 in
Hydraulic oil - ISO VG 46

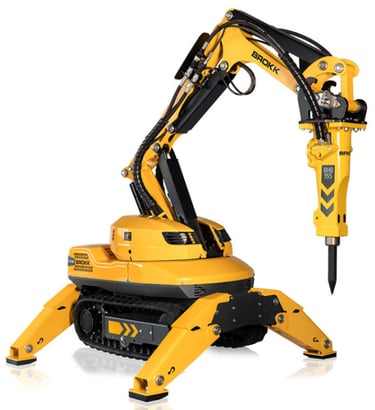

Brokk 110
Machine weight (without attachment) - 990 kg, 2183 lbs
Recommended attachment weight - 160kg, 353 lbs
Climbing inclination, max. - 30°
Standard point size -
Width min. - 780 mm, 30.7 in
Height min. - 1147 mm, 45.2 in
Vertical reach (incl. breaker) - 4300 mm, 169 in
Horizontal reach (incl. breaker) - 3700 mm, 146 in
Hydraulic oil - ISO VG 46

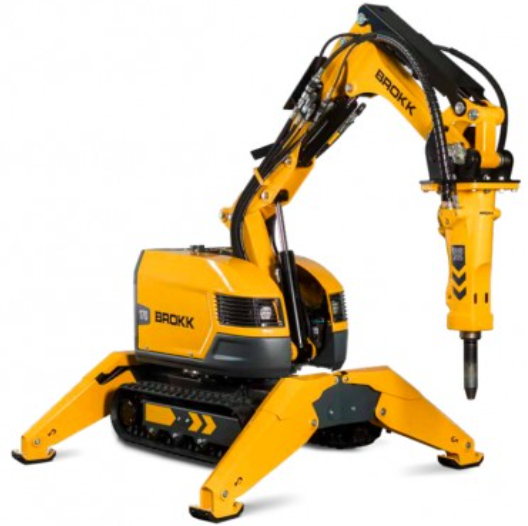

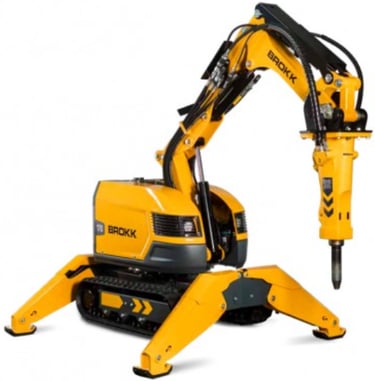

Brokk 170
Machine weight (without attachment) - 1600 kg, 3527 lbs
Recommended attachment weight - 270 kg, 595 lbs
Climbing inclination, max. - 30°
Standard point size -
Width min. - 780 mm, 30.7 in
Height min. - 1254 mm, 49.4 in
Vertical reach (incl. breaker) - 4800 mm, 189 in
Horizontal reach (incl. breaker) - 4400 mm, 173 in
Hydraulic oil - ISO VG 46

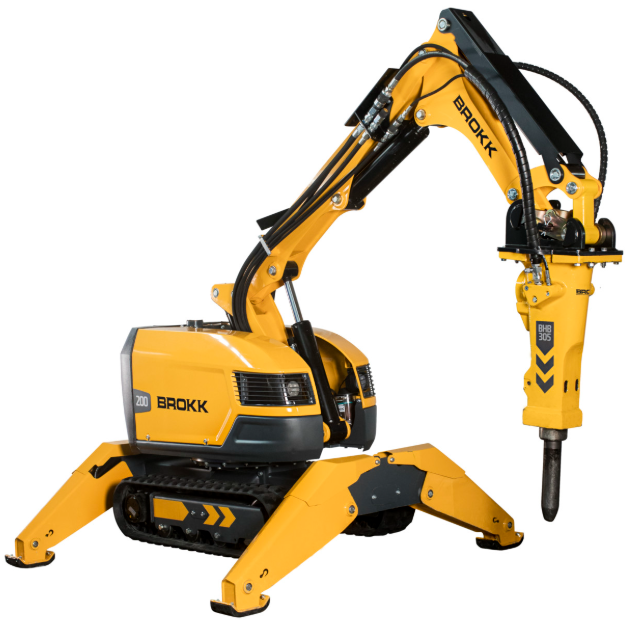

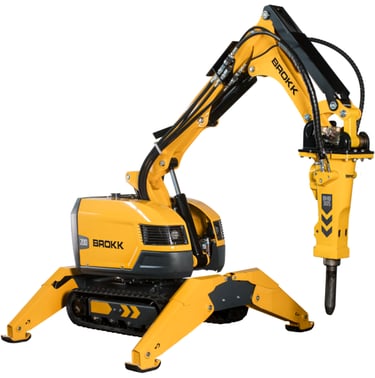

Brokk 200
Machine weight (without attachment) - 2100 kg, 4630 lbs
Recommended attachment weight - 350kg, 772 lbs
Climbing inclination, max. - 30°
Standard point size -
Width min. - 780mm, 30.7 in
Height min. -1351 mm, 53.2 in
Vertical reach (incl. breaker) - 5450 mm, 215 in
Horizontal reach (incl. breaker) - 5100 mm, 201 in
Hydraulic oil - ISO VG 46

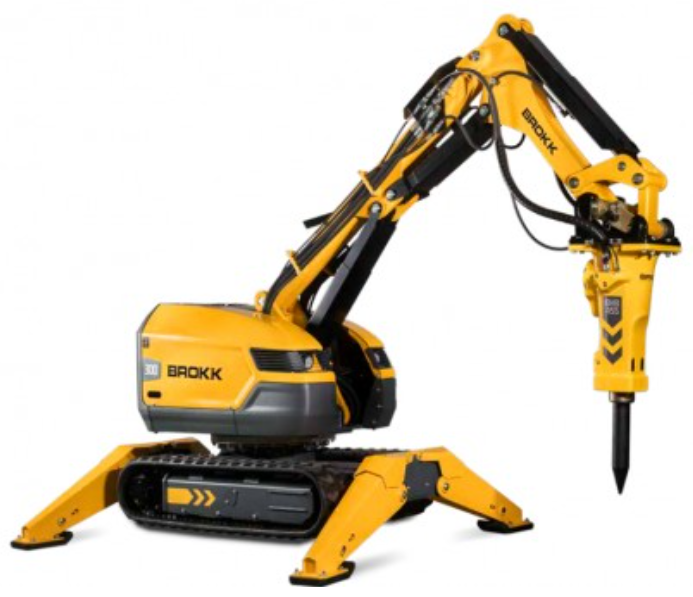

Brokk 300
Machine weight (without attachment) - 3650 kg, 8047 lbs
Recommended attachment weight - 500kg, 1102 lbs
Climbing inclination, max. - 30°
Standard point size -
Width min. - 1200 mm, 47.2 in
Height min. - 1530 mm, 60.2 in
Vertical reach (incl. breaker) - 6500 mm, 256 in
Horizontal reach (incl. breaker) - 6100 mm, 240 in
Hydraulic oil - ISO VG 46

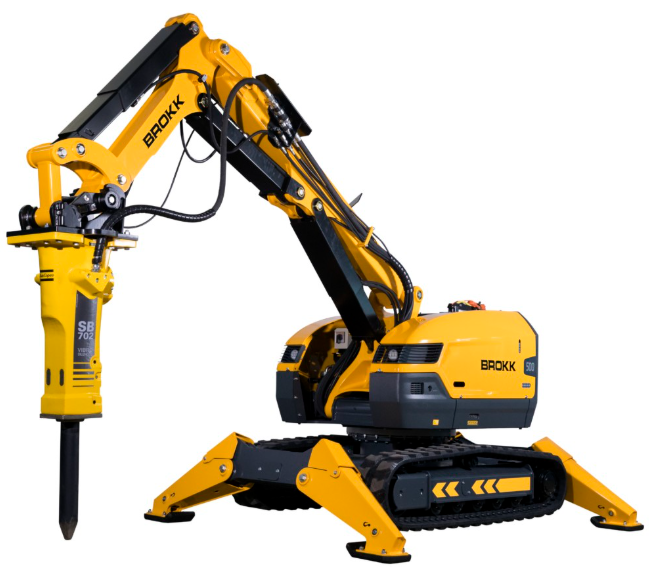

Brokk 500
Machine weight (without attachment) - 5200 kg, 11,464 lbs
Recommended attachment weight - 700 kg, 1543 lbs
Climbing inclination, max. - 30°
Standard point size -
Width min. - 1600 mm, 63 in
Height min. - 1677 mm, 66 in
Vertical reach (incl. breaker) - 7300 mm, 287 in
Horizontal reach (incl. breaker) - 7000 mm, 276 in
Hydraulic oil - ISO VG 46

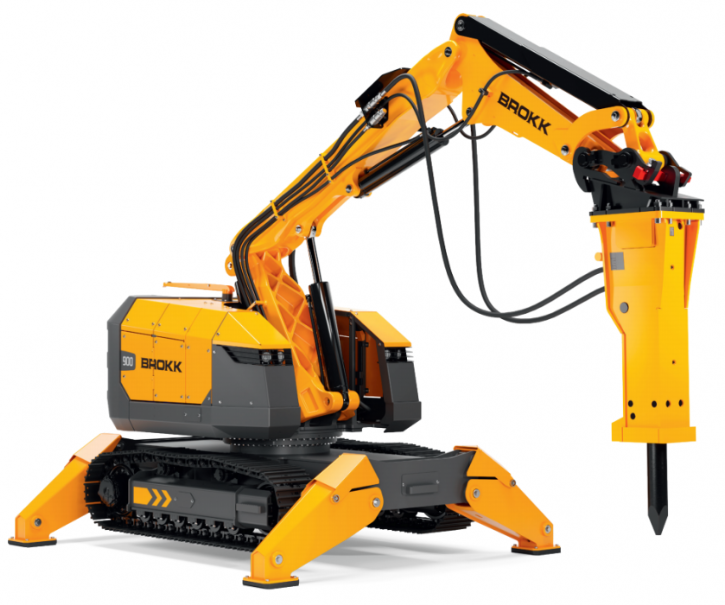

Brokk 900
Machine weight (without attachment) - 11,400 kg, 25,133 lbs
Recommended attachment weight - 1500 kg, 3307 lbs
Climbing inclination, max. - 30°
Standard point size -
Width min. - 2150 mm, 84.6 in
Height min. - 2545 mm, 100.2 in
Vertical reach (incl. breaker) - 9100 mm, 358 in
Horizontal reach (incl. breaker) - 8500 mm, 335 in
Hydraulic oil - ISO VG 46
